🏁 Performance & Lifting Power

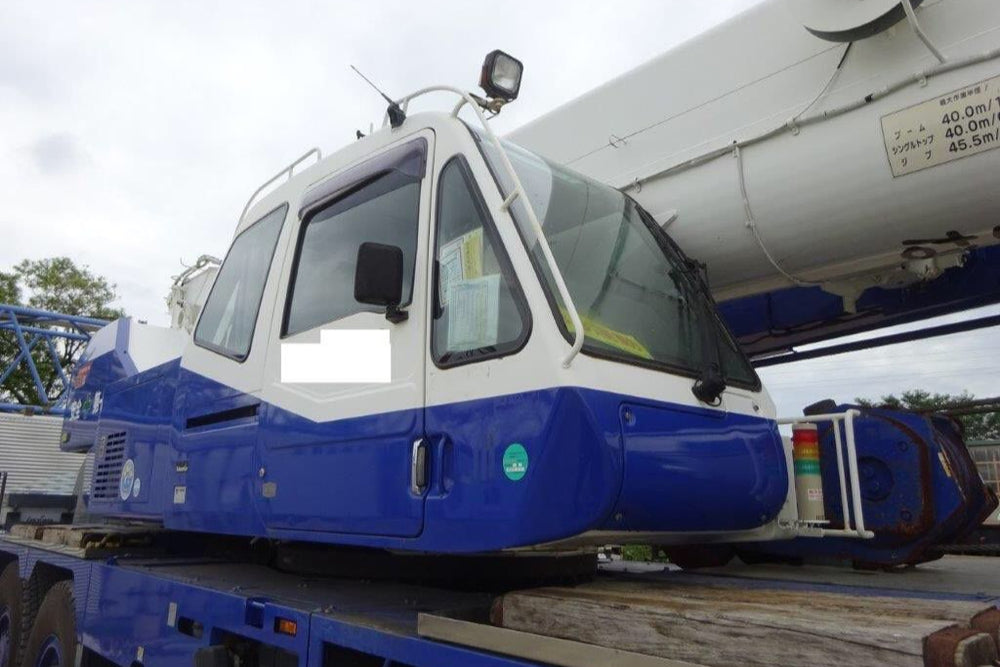

The Tadano GR700 is a high-capacity rough terrain crane equipped with a Cummins QSL9-4A diesel engine delivering 375PS (276kW) and 1,491Nm of torque. With a 9.8m to 44.0m 6-stage round boom and a 3-stage SACO jib extending up to 17.7m, this crane reaches a maximum lifting height of 63.0m. It can lift up to 70,000kg at 2.1m radius, offering exceptional lifting capacity for heavy-duty industrial jobs.

🎯 Boom & Jib Highlights

• 6-Stage Boom: 9.8m – 44.0m
• 3-Stage Auto Jib: 8.4m – 17.7m
• Working Radius (Boom): Up to 40.0m
• Maximum Lift Height: 63.0m (Jib)
• Jib Offset Angles: 5° to 60°

🔧 Technical Specifications

• Engine: Cummins QSL9-4A, 6-cylinder, 8.849L
• Transmission: Power shift, 4 forward / 1 reverse
• Max Speed: 49 km/h
• Turning Radius: 11.5m (4-wheel steering)
• Hill Climb: tanθ 0.46

📏 Dimensions & Weight

• Length: 12,765 mm
• Width: 2,780 mm
• Height: 3,750 mm
• Total Weight: 41,295 kg
• Axle Load: ~10,240 kg per axle

🚧 Operational Features

• Eco-Mode: Reduces CO₂ emissions by up to 26%
• Fuel Consumption Monitor: Tracks operational efficiency
• Positive Control: Reduces hydraulic pump output during idle
• SACO Jib: Improves safety, minimizes working height risk
• High-strength round boom: Maximizes lift without excess weight

📈 Condition & Usage

This Tadano GR700 is in excellent condition with only 14,154 km of usage and 8,255 working hours. All key functions are tested, and the unit is ready for export from Japan. Optional inspection and shipping support available.
